AO - Aluminum Sheet & Post Open top Walking Floor

SERIES:  AO

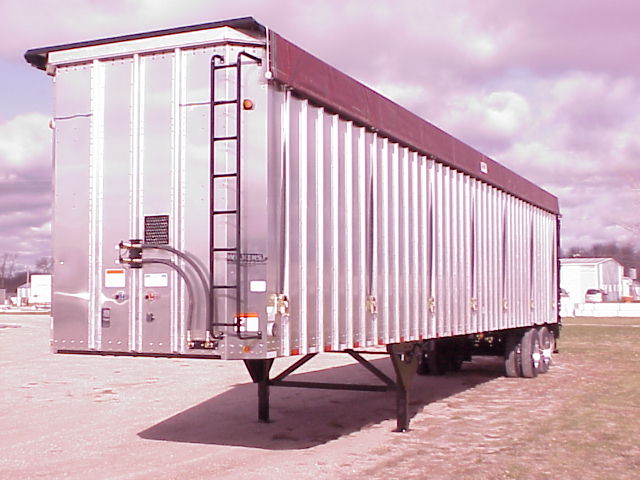

SPECIFICATION FOR MODEL:  WILKENS ALUMINUM COMPOSITE OPEN TOP, WALKING FLOOR TRANSFER TRAILER

CAPACITY:  110 - 135 CU. YD.

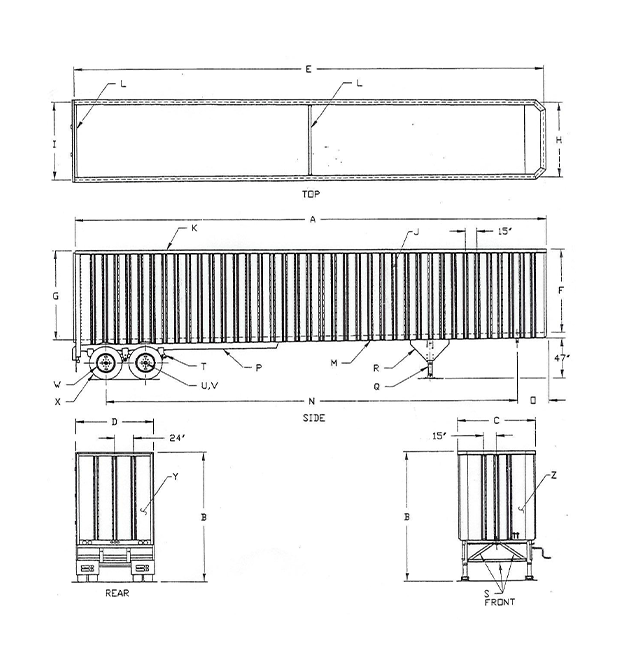

OUTSIDE DIMENSIONS

A. LENGTH............................... 40’ - 53’
B. HEIGHT................................ 13’6”
C. WIDTH FRONT................... 102”
D. WIDTH REAR...................... 102”

INSIDE DIMENSIONS

E. LENGTH............................... 39’9” – 52’9”
F. HEIGHT FRONT.................. 104”
G. HEIGHT REAR.................... 104”
H. WIDTH FRONT................... 96”
I. WIDTH REAR...................... 96”
H. WIDTH FRONT................... 93”

TRAILER FEATURES

J. SIDEWALL........................... 5052H32 .125 ALUMINUM SHEET WITH 6061T6 ALUMINUM POSTS ON 15” CENTERS
K. TOP RAIL............................. WILKENS HEAVY DUTY ALUMINUM TUBE 4”x 6”x 3/8”
L. SPREADER BAR................. 3” x 3” x 1/4” STEEL TUBE
M. BOTTOM RAIL.................... 10GA. OR 7GA FORMED STEEL
N. KING PIN/LAST AXLE....... 36’ – 47’
O. KING PIN SETTING............ 36” WITH ¼” 100,000# PLATE
P. SUB-FRAME........................ 4” X 8” X 3/16” STEEL TUBE
Q. LANDING GEAR................. HOLLAND MARK V
R. GEAR SUPPORT................. 7GA
S. GEAR BRACES................... 3” CHANNEL

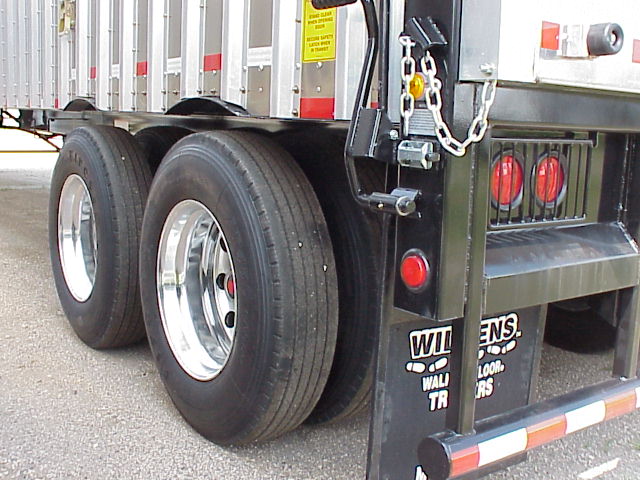

T. SUSPENSION...................... HUTCH TANDEM 9700 SINGLE LEAF SPRING, 48,000# CAPACITY
U. AXLES & BRAKES............. (2) 5” ROUND, 25,000# AXLES, 452M ABS WITH TOP MOUNT CHAMBERS
V. HUBS.................................... 10 BOLT
W. RIMS..................................... STEEL DISC
X. TIRES.................................... 11R X 22.5, 14PLY

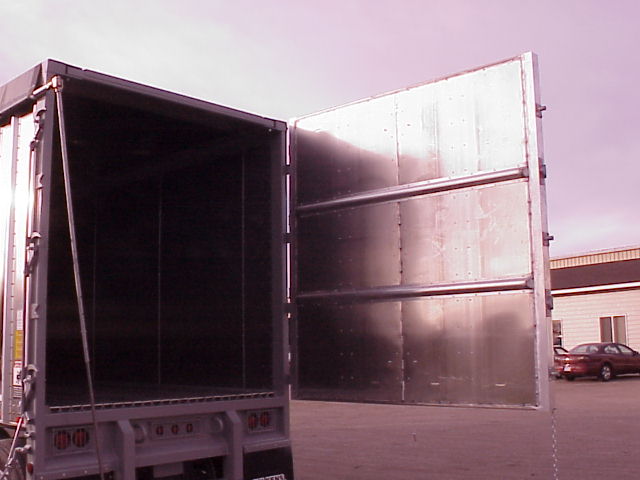

Y. REAR DOOR........................ CURBSIDE SWING, H.D. HINGES
Z. FRONT PANELS.................. 5052H32 .125 ALUMINUM SHEETS WITH 6061T6 POSTS

KING PIN SECTION.................... FABRICATED FROM ¼” 100,000# CHANNEL
CROSSMEMBERS...................... 4” X 3.2# ON 15” CENTERS, STEEL I-BEAM
LIGHT SYSTEM.......................... TRUCK LIGHT 40 SERIES, LIGHT IN DOOR

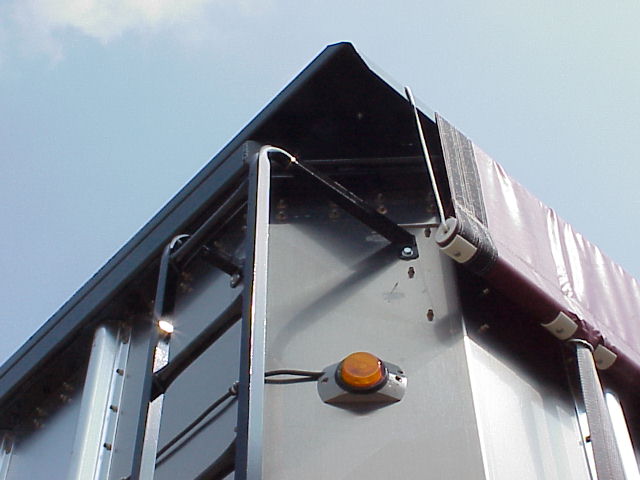

COVER......................................... ROLL TARP REAR CRANK

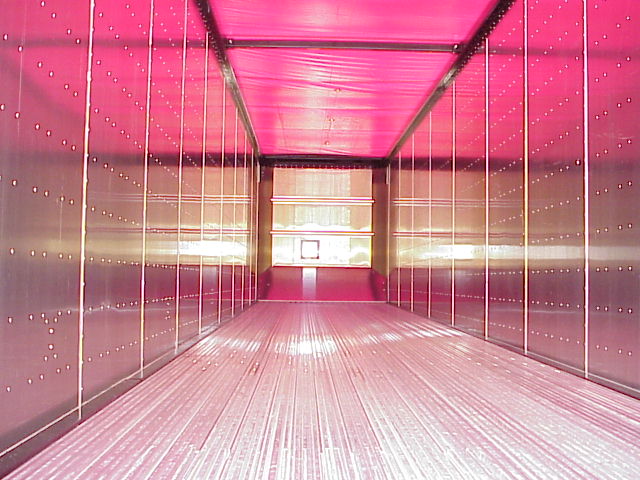

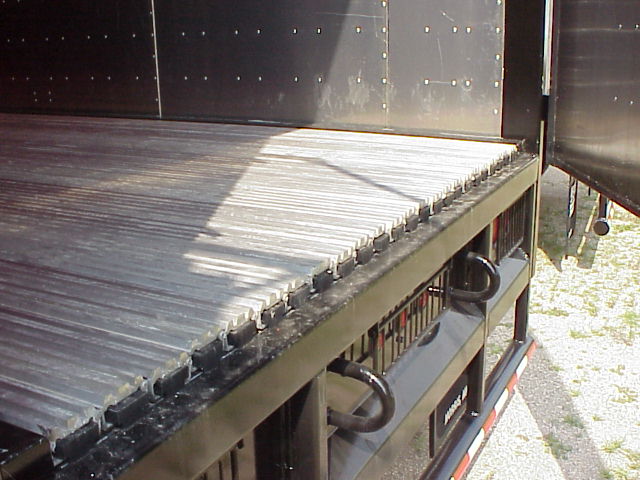

UNLOADING SYSTEM.............. KEITH RUNNING FLOOR II – HALLCO LIVE FLOOR
FLOOR THICKNESS................... CUSTOMER CHOICE
LANDFILL EQUIPMENT........... TOW HOOKS, PUSH BUMPERS
METAL PREPARATION............ EXTERIOR SANDBLASTED, EPOXY PRIMER
PAINT........................................... ENAMEL
FRONT CORNERS...................... 10” DIAGONAL RADIUS
WEIGHT....................................... 15,000# - 16,500#
