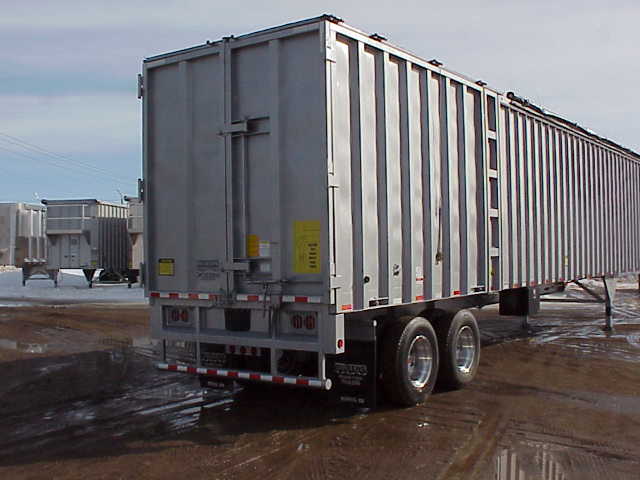

SPECIFICATION FOR MODEL:   50127AOX WILKENS X-SERIES EXPANDING WALL, WALKING FLOOR, OPEN TOP, STEEL TRANSFER TRAILER

CAPACITY:  127 Cubic Yards

OUTSIDE DIMENSIONS

A. LENGTH.............................. 50’
B. HEIGHT.............................. 13’6”
C. WIDTH FRONT................. 102”
D. WIDTH REAR................... 102”

INSIDE DIMENSIONS

E. LENGTH.............................. 47’9”
F. HEIGHT FRONT............... 104”
G. HEIGHT REAR.................. 104”
H. WIDTH FRONT................. 96”
I. WIDTH REAR................... 96”

TRAILER FEATURES

J. SIDEWALL......................... FRONT 2/3 .125 ALUMINUM SHEET-POST,BI-FOLD REAR SECTION 14GA. STEEL
K. TOP RAIL........................... ALUMINUM EXTRUDED 4” x 6” x 6061 T-6
L. SPREADER BAR.............. 3” X 3” X1/4” STEEL TUBE
M. BOTTOM RAIL................. 7GA FORMED STEEL
N. KING PIN/LAST AXLE... 44’
O. KING PIN SETTING......... 36” WITH ¼” 100,000# STEEL PLATE
P. SUB-FRAME...................... W12 x 30# I-BEAM
Q. LANDING GEAR.............. HOLLAND MARK V, SELF LEVELING SHOE
R. GEAR SUPPORT............... 7GA
S. GEAR BRACES................. 3” CHANNEL
T. SUSPENSION..................... TANDEM HT 9700 SPRING
U. AXLES & BRAKES.......... (2) 5” ROUND, 25,000# AXLES, 4S2M ABS WITH TOP MOUNT CHAMBERS
V.HUBS................................... 10 BOLT UNIMOUNT
W. RIMS.................................... ALUMINUM DISC
X. TIRES................................... 11R X 22.5, 14PLY

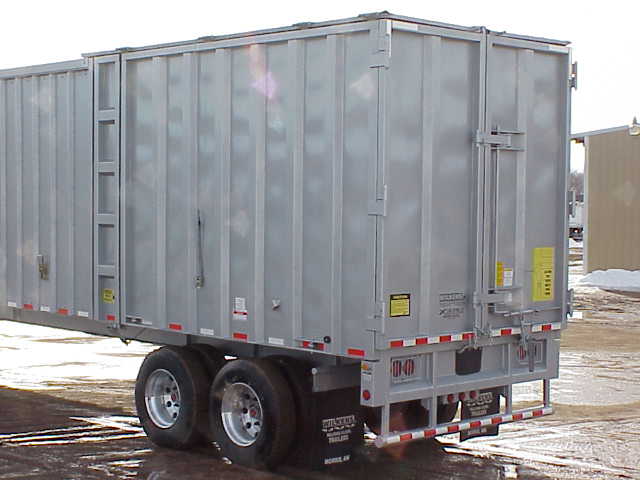

Y. REAR DOOR...................... SPECIAL STEEL DOUBLE DOOR WITH RACHET LATCH
Z. FRONT PANELS............... .125 ALUMINUM SHEET & POST

KING PIN SECTION................ FABRICATED FROM ¼” 100,000# CHANNEL
CROSSMEMBERS.................... 4” X 3.2# ON 12’ CENTERS, STEEL I-BEAM
LIGHT SYSTEM........................ TRUCK LIGHT 40 SERIES, LIGHTS IN BUMPER
COVER........................................ FRONT 2/3 ROLL TARP, REAR 13’ SPECIAL MANUAL FLIP TOP

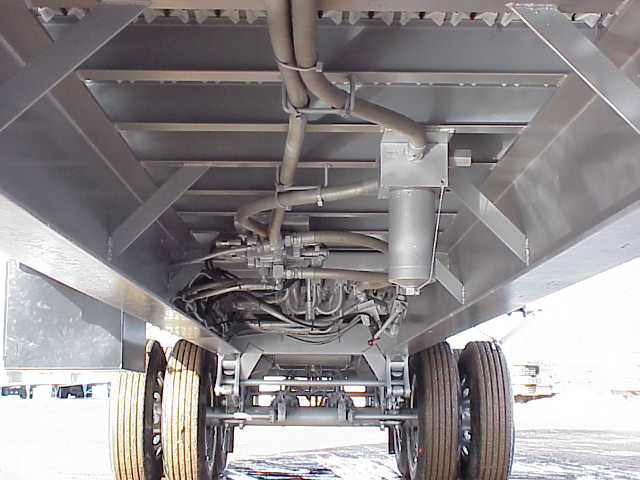

UNLOADING SYSTEM.......... KEITH RUNNING FLOOR II
FLOOR THICKNESS............... #2299 CWS KEITH FLOORING

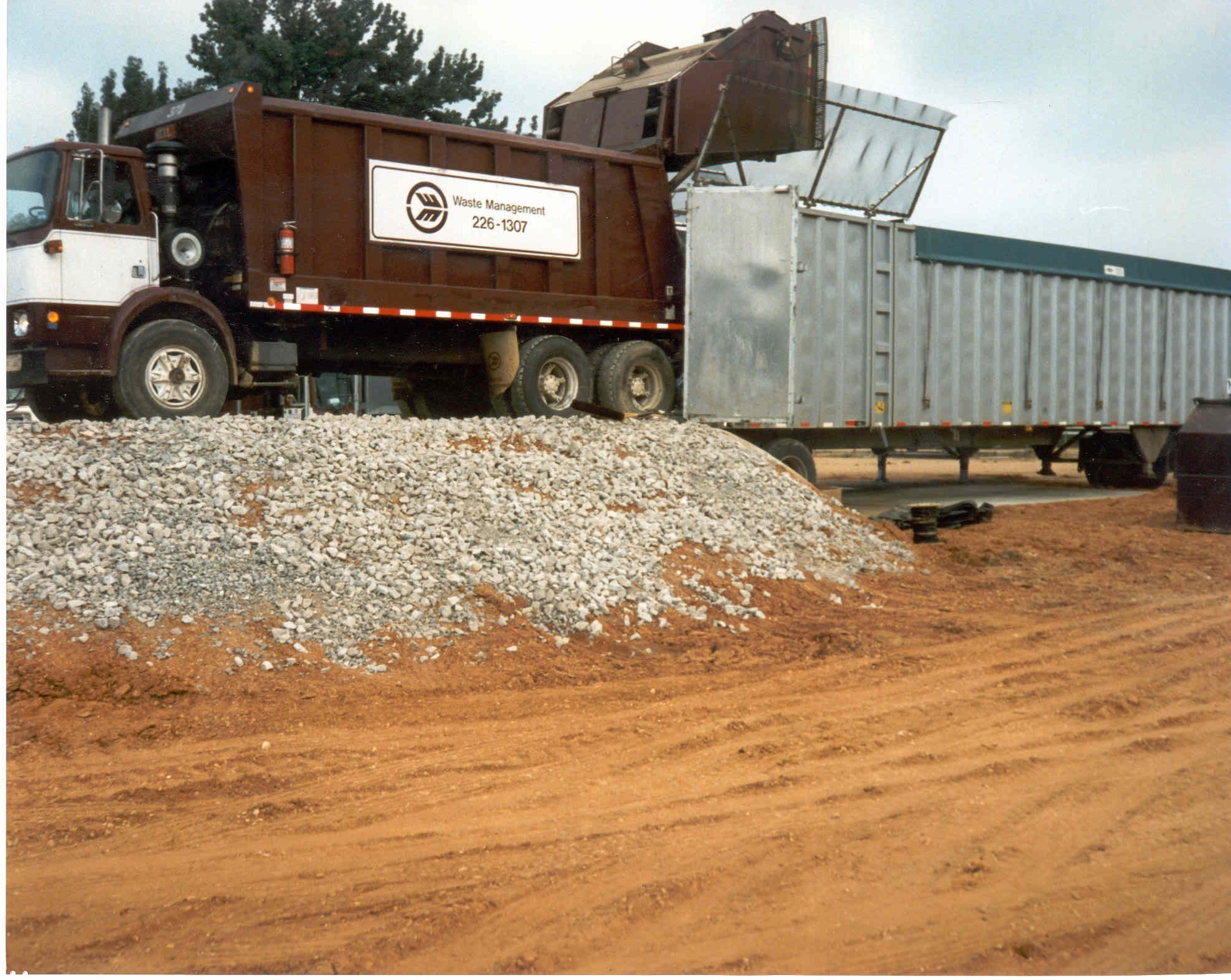

LANDFILL EQUIPMENT....... TOW HOOKS, PUSH BUMPERS, CATWALK, LADDER, IN-LINE PRESSURE FILTER
METAL PREPARATION......... EXTERIOR SANDBLASTED, EPOXY PRIMER
PAINT.......................................... GRAY ENAMEL
FRONT CORNERS................... 10” DIAGONAL RADIUS
WEIGHT...................................... 20,500#
