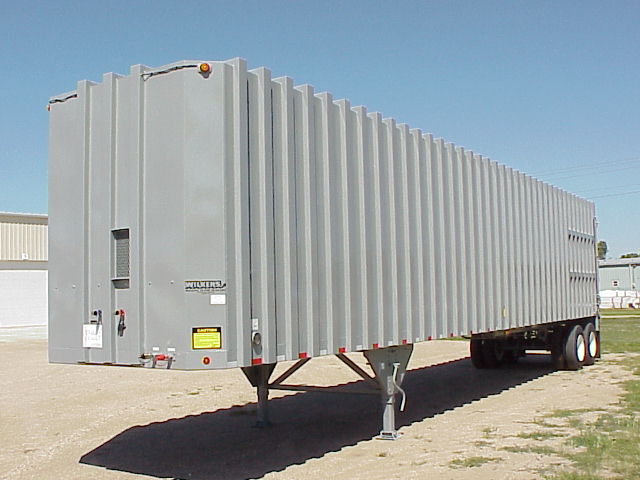

CC - Steel Sheet & Post Compactor Compatible Walking Floor

SERIES:  CC

SPECIFICATION FOR MODEL:  WILKENS LOAD RUNNER WALKING FLOOR, STEEL SHEET & POST COMPACTOR COMPATABLE TRANSFER TRAILER

CAPACITY:  100 - 135 CU. YD.

OUTSIDE DIMENSIONS

A. LENGTH............................... 40’ - 53’
B. HEIGHT................................ 12’6”
C. WIDTH FRONT................... 96” – 102”
D. WIDTH REAR...................... 96” – 102”

INSIDE DIMENSIONS

E. LENGTH............................... 39’9” – 52’9”
F. HEIGHT FRONT………..92”
G. HEIGHT REAR………….92”
H. WIDTH FRONT…………90” – 96”
I. WIDTH REAR…………..90” – 96”

TRAILER FEATURES

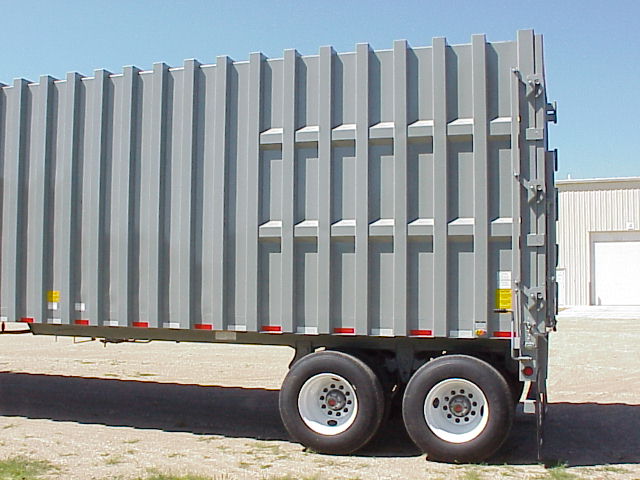

J.SIDEWALL........................... 50,000# YIELD 12GA STEEL, 10GA REAR 10’, 5” X 3” X 10GA POST ON 20” CENTER ON 90 DEGREE, REAR FOUR PANELS WITH TWO ROWS OF HORT. BRACE
K. TOP RAIL............................. INTER LOCKING SIDE WALL AND ROOF POST
L. SPREADER BAR................. 3” X 3” X1/4” STEEL TUBE
M. BOTTOM RAIL.................... 7GA FORMED STEEL
N. KING PIN/LAST AXLE....... 34’ – 42’
O. KING PIN SETTING............ 36” WITH 5/16” STEEL T-1 PLATE
P. SUB-FRAME........................ 10” I-BEAM
Q. LANDING GEAR................. HOLLAND MARK V, SELF LEVELING SHOE
R. GEAR SUPPORT................. 7GA
S. GEAR BRACES................... 3” CHANNEL
T. SUSPENSION...................... HUTCH 9700 TANDEM SPRING
U. AXLES & BRAKES............. (2) 5” ROUND, 25,000# AXLES, 452M ABS WITH TOP MOUNT CHAMBERS
V. HUBS.................................... 10 BOLT
W. RIMS..................................... STEEL DISC, 8.25 X 22.5, 10 HOLE, WHITE
X. TIRES.................................... 11R X 22.5, 14PLY

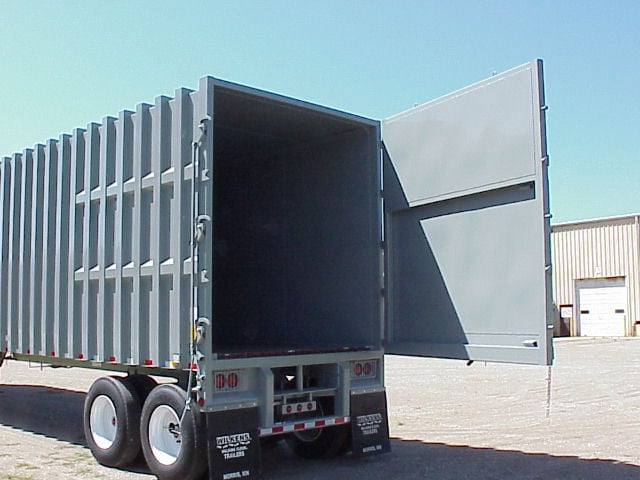

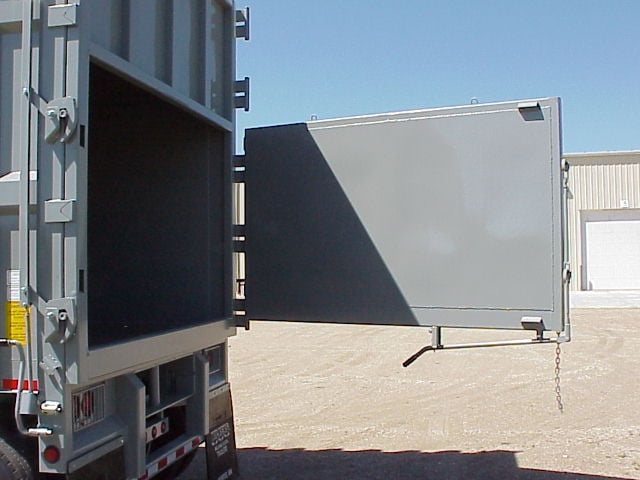

Y. REAR DOOR........................ 12GA DUTCH DOOR, CURBSIDE SWING, H.D. HINGES
Z. FRONT PANELS.................. 10GA

KING PIN SECTION.................... FABRICATED FROM ½” T-1 PLATE
CROSSMEMBERS...................... 4” X 3.2# ON 12’ CENTERS, STEEL I-BEAM
LIGHT SYSTEM.......................... TRUCK LIGHT 40 SERIES, LIGHT IN DOOR
COVER......................................... 12GA STEEL, 10GA REAR 10’, 5” X 3” X 10GA POSTS ON 20” CENTERS, BOX BRACE
ON REAR FOUR PANELS, BALANCE ONE ROW

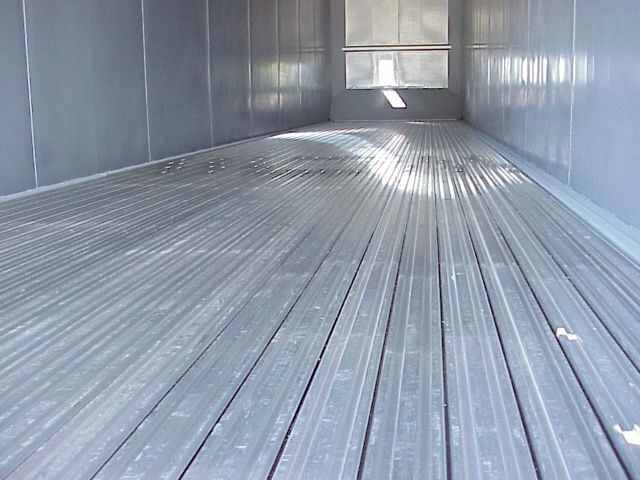

UNLOADING SYSTEM.............. KEITH RUNNING FLOOR II – HALLCO LIVE FLOOR
FLOOR THICKNESS................... CUSTOMER CHOICE
LANDFILL EQUIPMENT........... TOW HOOKS, PUSH BUMPERS
METAL PREPARATION............ EXTERIOR SNADBLASTED, EPOXY PRIMER
PAINT........................................... ENAMEL
FRONT CORNERS...................... 10” DIAGONAL RADIUS
WEIGHT....................................... 20,500# - 25,000
