CCE - Steel Sheet & Post Compactor Compatible Ejector

SERIES:  CCE

SPECIFICATION FOR MODEL:  WILKENS LOAD RUNNER STEEL COMPACTOR COMPATIBLE, PUSH-OUT TRANSFER TRAILER

CAPACITY:  65 - 75 CU. YD.

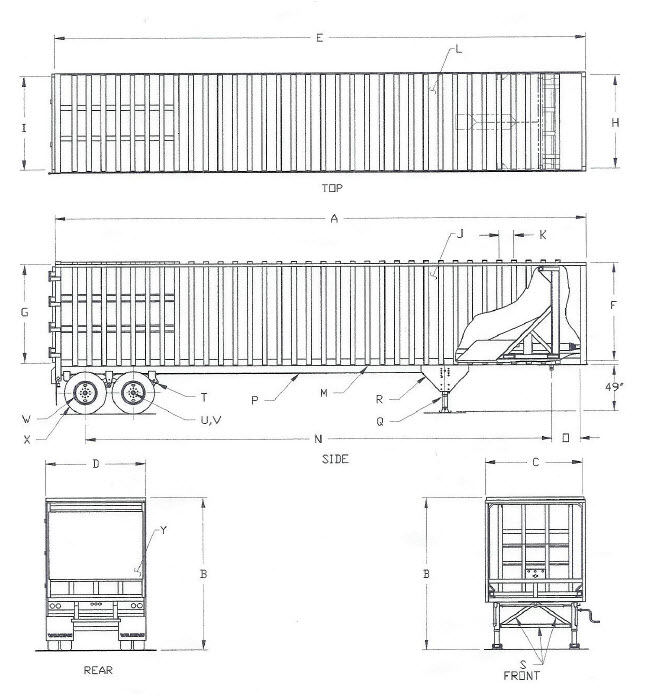

OUTSIDE DIMENSIONS

A. LENGTH............................... 40’ – 45’
B. HEIGHT................................ 12’6”
C. WIDTH FRONT................... 96”- 102”
D. WIDTH REAR...................... 96”- 102”

INSIDE DIMENSIONS

E. LENGTH............................... 36’ – 41’
F. HEIGHT FRONT.................. 89”
G. HEIGHT REAR.................... 89”
H. WIDTH FRONT................... 90”- 96”
I. WIDTH REAR...................... 90”- 96”

TRAILER FEATURES

J. SIDEWALL........................... 12GA STEEL SHEETS 50,000#, 10GA POSTS ON 15” CENTERS, CONTINUOUS WELD
K. POSTS................................... 10GA INTERLOCKING ROOF AND SIDEWALL CHANNELS ON 15” CENTERS
L. ROOF.................................... 12GA STEEL SHEETS 50,000#, 10GA POSTS ON 15” CENTERS, CONTINUOUS WELD
M. BOTTOM RAIL.................... 10GA FORMED CHANNEL50,000#
N. KING PIN/LAST AXLE....... 34’6”- 39’6”
O. KING PIN SETTING............ 36”
P. SUB-FRAME........................ (2) 4” x 8” ¼” STEEL TUBE

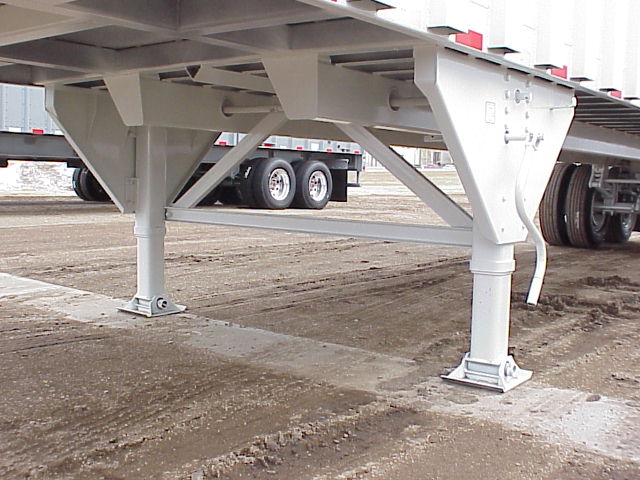

Q. LANDING GEAR................. HOLLAND MARK V
R. GEAR SUPPORT................. 7GA
S. GEAR BRACES................... 3” CHANNEL

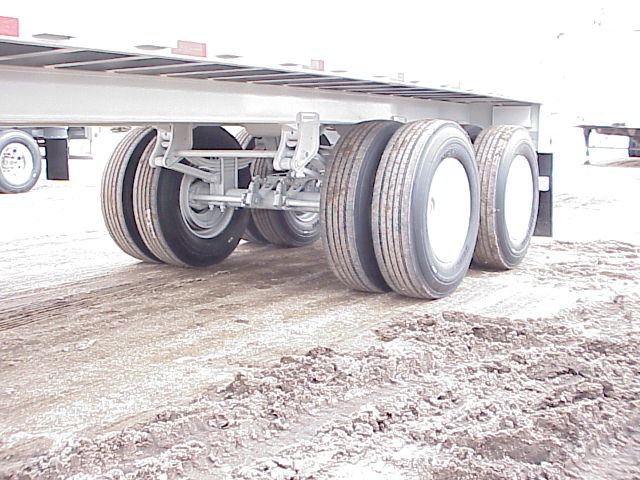

T. SUSPENSION...................... HUTCH 9700 365-00 H.D. SPRING 48,000# CAPACTIY

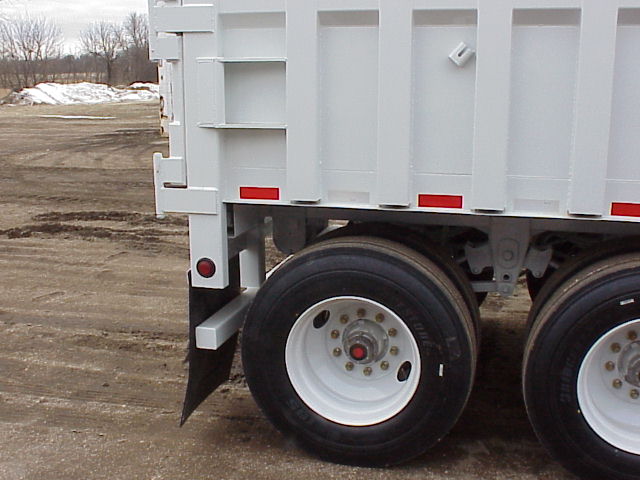

U. AXLES & BRAKES............. (2) 5” ROUND AXLES 25,000# RATED, OUTBOARD DRUMS, 4S2M ABS
V. HUBS.................................... 10 BOLT UNIMOUNT
W. RIMS..................................... STEEL DISC
X. TIRES.................................... 11Rx22.5

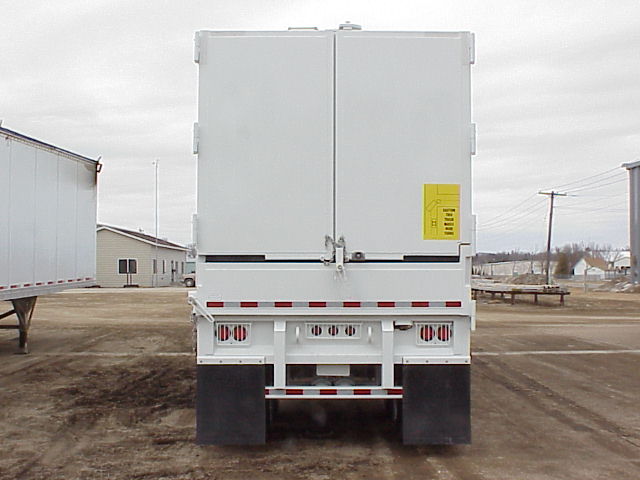

Y. REAR DOOR........................ DUTCH TYPE, TWO SECTION

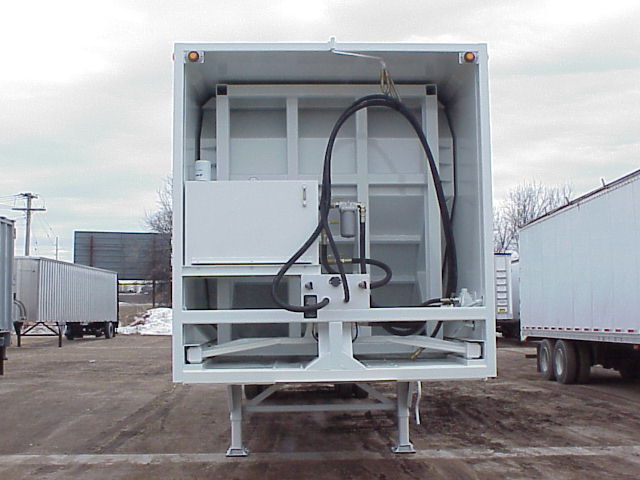

Z. FRONT PANELS.................. OPEN FRONT

KING PIN SECTION.................... FABRICATED FROM ½” T-1 PLATE
CROSSMEMBERS...................... 4” I-BEAM 3.2# ON 12” CENTERS
LIGHT SYSTEM.......................... TRUCK LITE 40

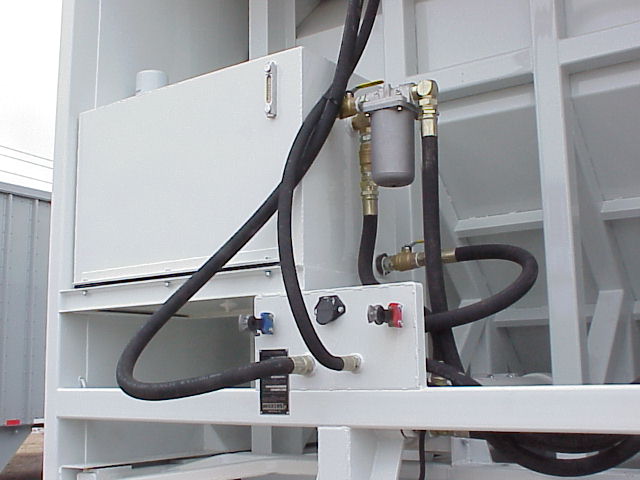

UNLOADING SYSTEM.............. CUSTOM HOIST DOUBLE ACTING TELESCOPIC CYLINDER WITH 7GA EJECT PLATE
FLOOR THICKNESS................... 7GA 50,000#
LANDFILL EQUIPMENT........... PUSH BUMPER AND TOW HOOKS
METAL PREPARATION............ PRIMER COMPLETE TRAILER
PAINT........................................... GREY ENAMAL
WEIGHT....................................... 24,200# - 26,000#
