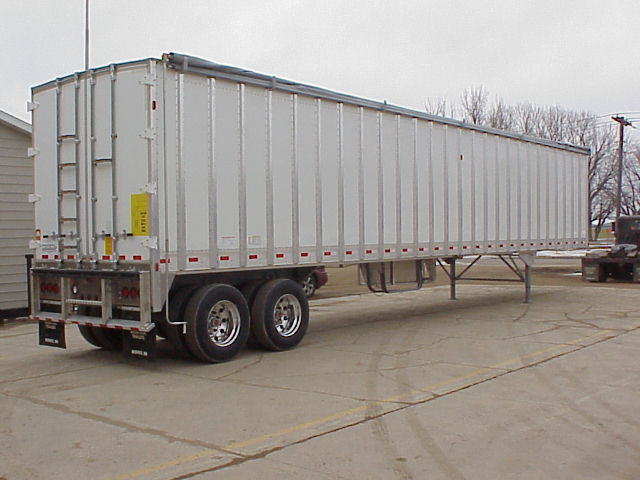

LWAO - Aluminum Sheet & Post Open top Walking Floor / Tipper
SERIES: AO (WILKENS ALL ALUMINUM LIGHT WEIGHT AG/FOREST PRODUCT TRAILER)
CAPACITY:
OUTSIDE DIMENSIONS
A. LENGTH............................... 45’ – 53’
B. HEIGHT................................ 10’ – 13’
C. WIDTH FRONT................... 96” - 102”
D. WIDTH REAR...................... 96” – 102”
INSIDE DIMENSIONS
E. LENGTH........................... 44’10” – 52’10”
F. HEIGHT FRONT.................. 74” – 110”
G. HEIGHT REAR.................... 74” – 110”
H. WIDTH FRONT................... 90” – 98”
I. WIDTH REAR...................... 90” – 98”
TRAILER FEATURES
J. SIDEWALL........................... 5052-H38 .071 Aluminum skin prepainted white. 6061-T6 Aluminum posts 21.5” o/c left natural color, huck rivets and sealed with weather sealer tape.
K. TOP RAIL............................. Self cleaning 6061-T6 aluminum extruded rail
L. SPREADER BAR................. (5) 2”x2” Steel tarp bows arched 3”
M. BOTTOM RAIL.................... 10ga steel, cut out for rear wheels
N. KING PIN/LAST AXLE....... 39’ – 47’
O. KING PIN SETTING............ 36” / ¼” 100,000# plate

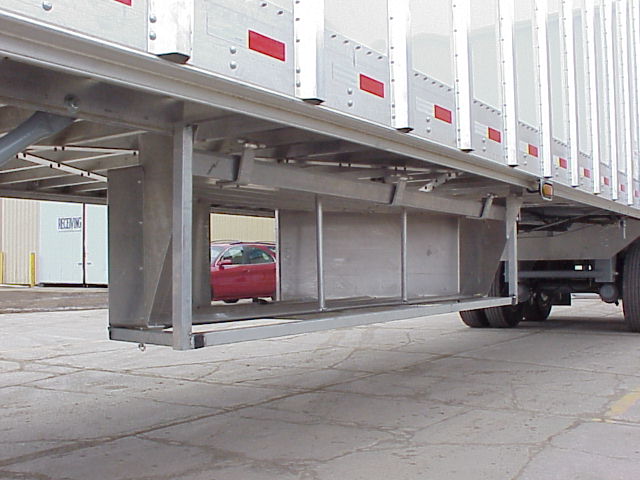

P. SUB-FRAME........................ 4” x 8” x 3/16” Steel

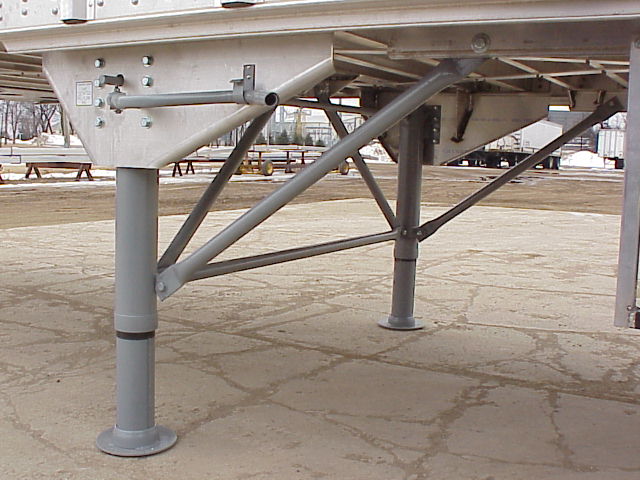

Q. LANDING GEAR................. 2-speed, driver side crank
R. GEAR SUPPORT................. Standard
S. GEAR BRACES................... Standard

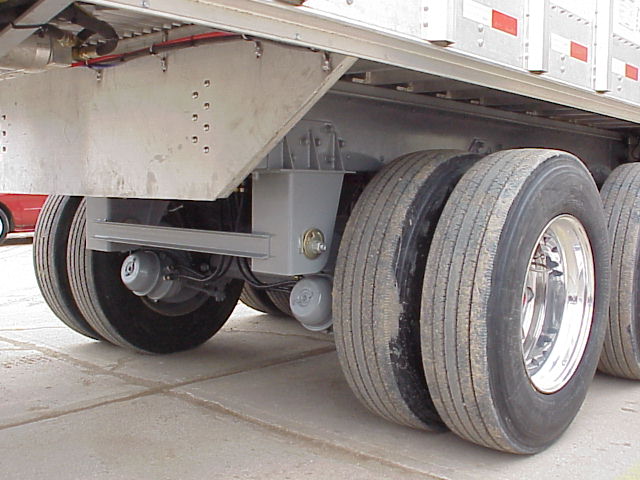

T. SUSPENSION...................... Hutch tandem spring

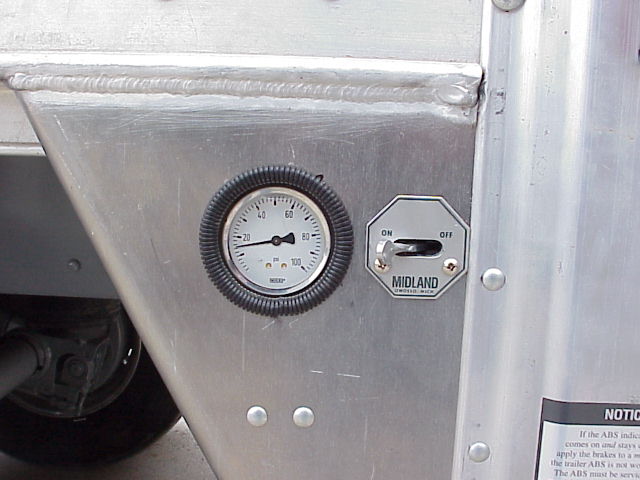

U. AXLES & BRAKES............. (2) Meritor 25,000# axles, 77.5” track, Quick change brakes, auto slacks, 4S2M ABS

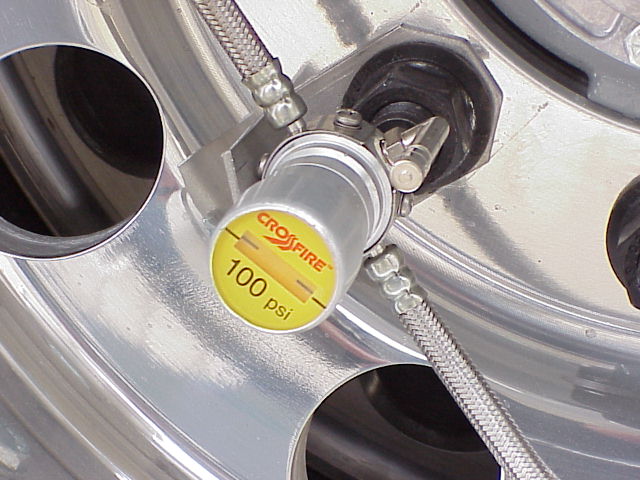

V. HUBS.................................... Walther 10 stud hub pilot
W. RIMS..................................... 8.25 x 22.5 10 hole
X. TIRES.................................... 11rx22.5 14 ply

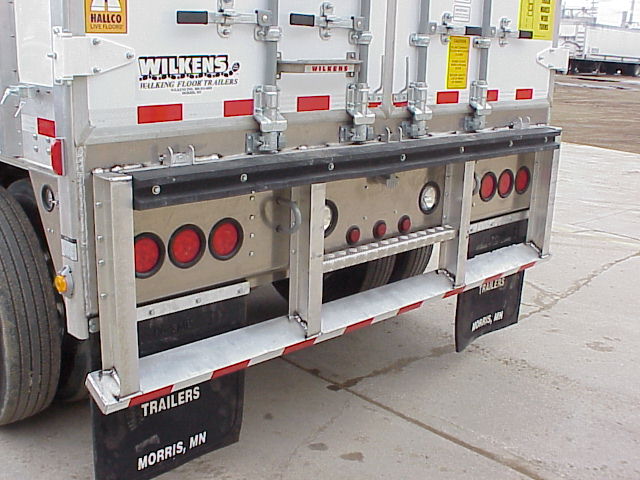

Y. REAR DOOR........................ Double plymetal doors, 4-hinges per door, double cam locks on each door. All hardware painted to match trailer.

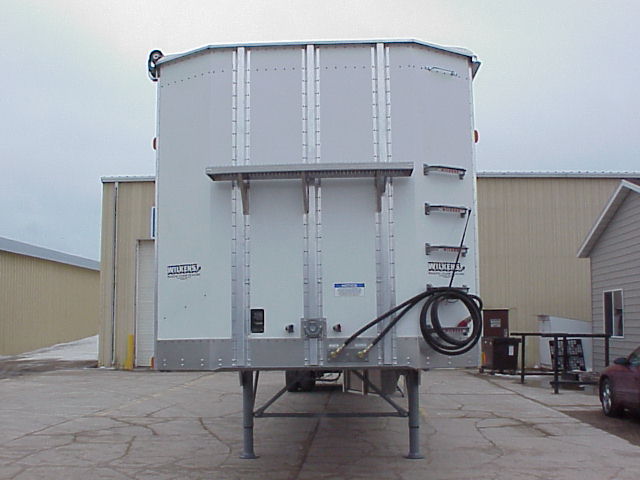

Z. FRONT PANELS.................. Same design as side walls, diagonal slant corners.
KING PIN SECTION.................... Wilkens ¼” 100,000# Channel
CROSSMEMBERS...................... Steel mini I-beam matching each side post and one half way between each post
LIGHT SYSTEM.......................... Truck-Lite 12 volt. (10) Clearance lights on both sides, 5-top & 5-bottom. (4) Rear sealed tail
lights, cluster of three in middle, all LED.
COVER......................................... Roll tarp, rear crank Shur-Loc type. (5) Straps, with (5) tarp stops. Aluminum end caps.

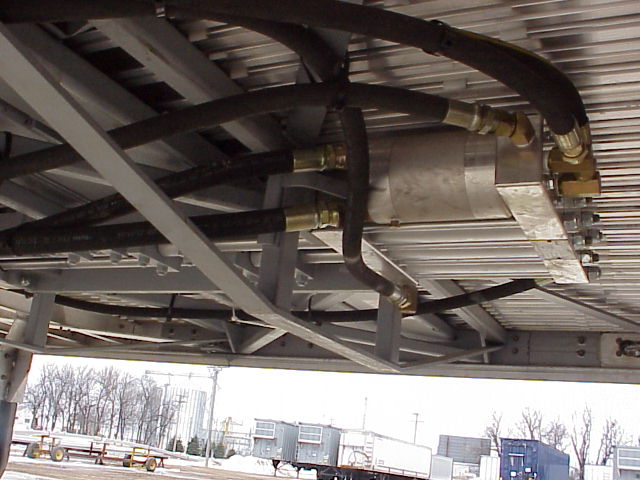

UNLOADING SYSTEM.............. Keith RFII 3” – Hallco Live Floor
FLOOR THICKNESS................... Customer choice

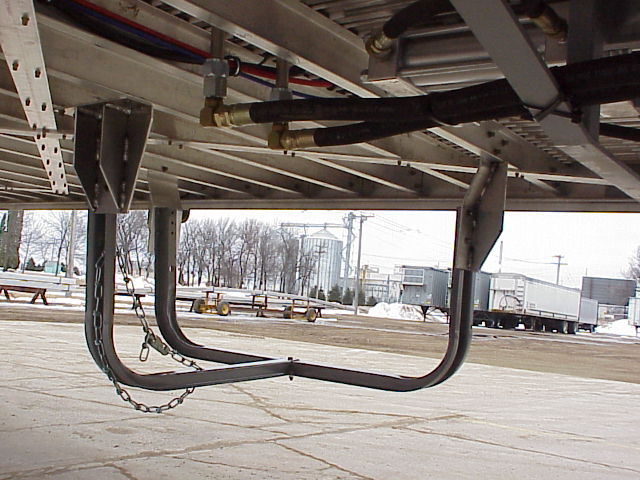

LANDFILL EQUIPMENT........... Front and rear ladder, catwalk on bulkhead. (2) Rear tow hooks on rear bumper attached to the
frame. Mud flaps, manifest box and hydraulic couplers to match pulling unit.
METAL PREPARATION............ All steel sandblasted and primed
PAINT........................................... All steel (except stainless) painted. Aluminum left natural unless prepainted.
FRONT CORNERS...................... Slant nose
WEIGHT....................................... 13,500# - 15,500#
