SPO - Steel Sheet & Post Open top Walking Floor

SERIES:  SPO
WILKENS LOAD RUNNER WALKING FLOOR, OPEN TOP, STEEL SHEET & POST TRANSFER TRAILER

CAPACITY: 115 - 135 CUBIC YARDS

OUTSIDE DIMENSIONS

A. LENGTH.............................. 45’- 53’
B. HEIGHT............................... 13’6”
C. WIDTH FRONT................... 102”
D. WIDTH REAR....................... 102”

INSIDE DIMENSIONS

E. LENGTH.............................. 44’9” - 52’9”’
F. HEIGHT FRONT ..................104”
G. HEIGHT REAR ................... 104”
H. WIDTH FRONT................... 96”
I. WIDTH REAR........................ 96”

TRAILER FEATURES

J. SIDEWALL........................... 12GA STEEL SHEET, 3” x 5” x 12GA VERTICLE POSTS 20” O/C
K. TOP RAIL............................. 3” X 5”X 3/16”  50,000# YIELD STEEL TUBE
L. SPREADER BAR................. 3” X 3” X1/4” STEEL TUBE
M. BOTTOM RAIL.................... 7GA FORMED STEEL
N. KING PIN/LAST AXLE....... 39’ - 47’
O. KING PIN SETTING............ 36” WITH 5/16” STEEL T-1 PLATE
P. SUB-FRAME........................ 4” X 8” X 3/16” STEEL TUBE
Q. LANDING GEAR................. HOLLAND MARK V, SELF LEVELING SHOE
R. GEAR SUPPORT................. 7GA
S. GEAR BRACES................... 3” CHANNEL
T. SUSPENSION...................... HUTCH TANDEM 9700 SPRING, 48,000# CAPACITY

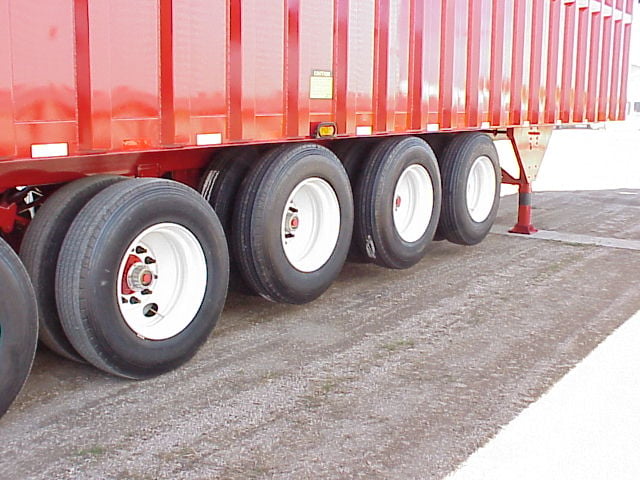

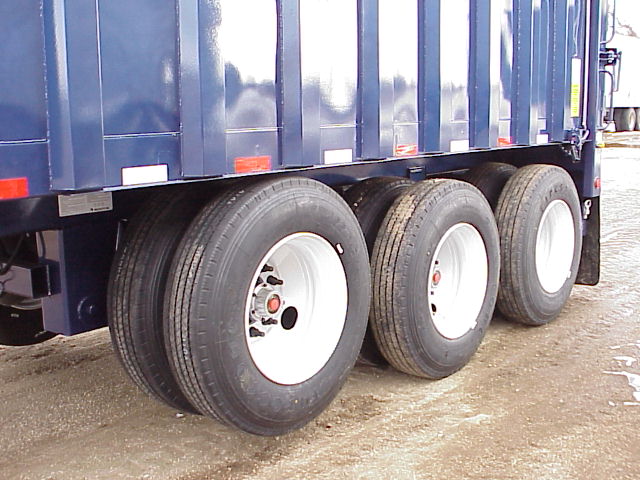

U. AXLES & BRAKES............. (2) 5” ROUND, 25,000# AXLES, 4S2M ABS WITH TOP MOUNT CHAMBERS
V. HUBS.................................... 10 BOLT
W. RIMS..................................... STEEL DISC
X. TIRES.................................... 11R X 22.5, 14PLY

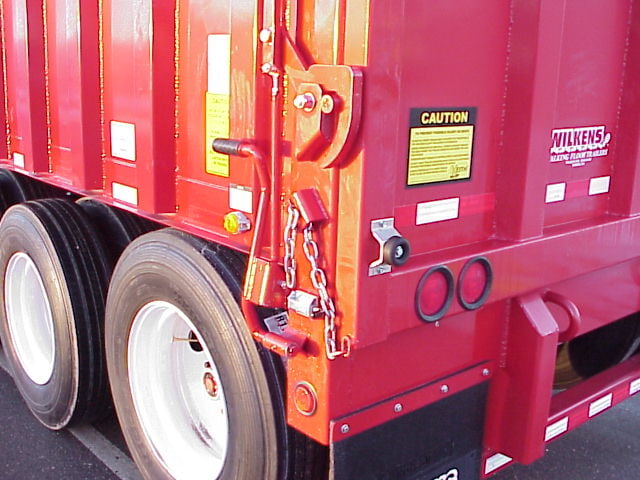

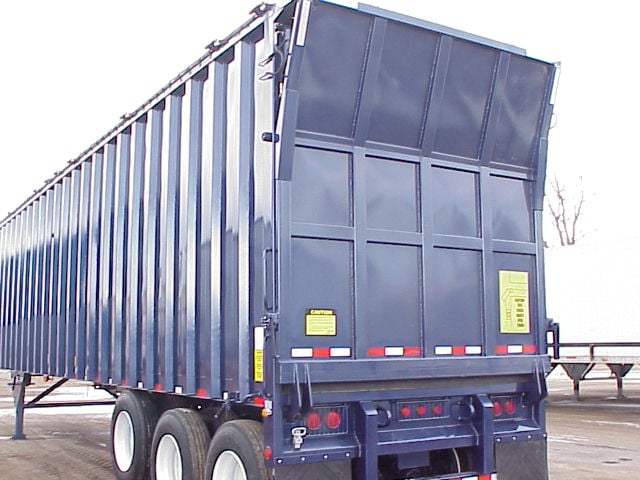

Y. REAR DOOR........................ CURBSIDE SWING, H.D. HINGES
Z. FRONT PANELS.................. 12GA SHEET & POSTS

KING PIN SECTION.................... FABRICATED FROM ½” T-1 PLATE
CROSSMEMBERS...................... 4” X 3.2# ON 12’ CENTERS, STEEL I-BEAM
LIGHT SYSTEM.......................... TRUCK LIGHT 40 SERIES, LIGHT IN DOOR
COVER......................................... ROLL TARP

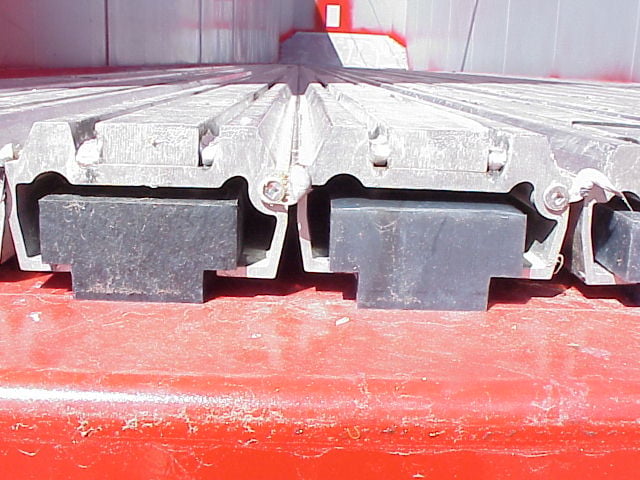

UNLOADING SYSTEM.............. KEITH RUNNING FLOOR II / HALLCO LIVE FLOOR
FLOOR THICKNESS................... CUSTOMER CHOICE
LANDFILL EQUIPMENT........... TOW HOOKS, PUSH BUMPERS
METAL PREPARATION............ EXTERIOR SANDBLASTED, EPOXY PRIMER
PAINT........................................... GRAY ENAMEL
FRONT CORNERS...................... 10” DIAGONAL RADIUS
WEIGHT....................................... 21,000# - 23,800#
